Accessing private Amazon API Gateway endpoints through custom Amazon CloudFront distribution using VPC Origins

Organizations can use Amazon CloudFront Virtual Private Cloud (VPC) Origins to deliver content from applications hosted in private subnets within Amazon VPC. Network traffic flows between Amazon CloudFront and Application Load Balancers (ALBs), Network Load Balancers (NLBs), or Amazon Elastic Compute Cloud (Amazon EC2) instances deployed within private subnets. This means that Amazon CloudFront can access both public and private Amazon Web Services (AWS) resources seamlessly.

This post demonstrates how you can connect CloudFront with a Private REST API in Amazon REST API Gateway using a VPC origin.

Overview

Organizations looking to enhance their application security and performance can find several key benefits in this architecture. You can use it to keep your APIs private and access them through CloudFront, implementing more security layers such as AWS Shield Advanced, geoblocking and TLSv1.3 support along with custom cipher suites. You can use this approach to engage the global CloudFront content delivery network while maintaining more control over the distribution.

Furthermore, you can enhance security controls through the built-in features of CloudFront, such as AWS WAF integration, custom SSL certificates, and field-level encryption. The VPC Origins feature eliminates any need to expose your internal resources to the public internet, which reduces your application’s potential attack surface.

Enterprises that need to maintain strict compliance requirements while delivering content globally can find this solution particularly valuable. Contain all traffic within the AWS private network to better meet your security and compliance objectives while still providing fast, reliable access to your applications.

Solution overview

You can set up CloudFront as the front door to your application and use VPC Origins integrated with an internal ALB to route traffic to Private Rest API through an execute-api VPC endpoint. All traffic between CloudFront and Private REST API remains within the AWS Private network.

The following figure provides an overview of the solution.

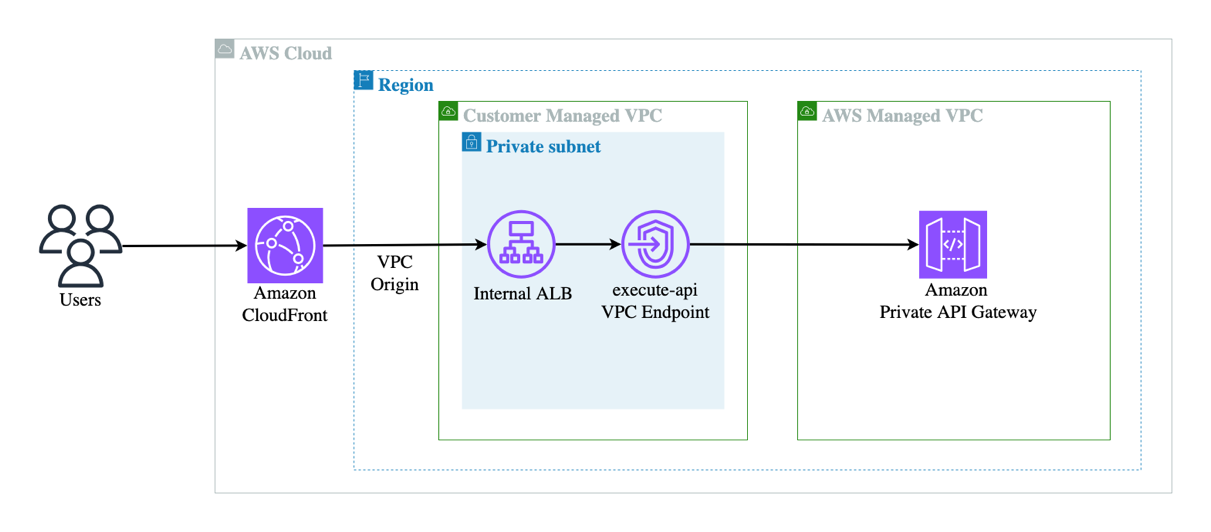

Figure 1: Amazon CloudFront to Private Amazon API Gateway

This diagram depicts three services running in an AWS account. The CloudFront distribution serves as the main entry point for the application. This distribution connects to an internal ALB using VPC Origins. The interface VPC endpoint execute-api is set as the target for the internal ALB to route requests to the Private Amazon API Gateway.

Solution deployment

To deploy this solution, follow the instructions in the GitHub repository and clone the repository.

The solution can be deployed in any AWS Region. Make sure to have a valid SSL certificate in AWS Certificate Manager (ACM) in the us-east-1 Region for the CloudFront distribution. All other resources must be in the same Region.

Prerequisites

For this walkthrough, the following resources are needed:

  • An Amazon VPC with at least 2 Private Subnets.
  • A Public Hosted Zone in Amazon Route 53.
  • A valid public SSL certificate in ACM in the us-east-1 Region for CloudFront and another certificate in the same Region as an ALB.
  • A custom domain name, covered by the ACM certificate for CloudFront distribution.

These are the input parameters for the solution deployment.

Walkthrough

The AWS Serverless Application Model (AWS SAM) template from the sample GitHub repository creates a secure, private networking architecture that provides controlled access to an API Gateway through CloudFront. It provisions a private API Gateway with a VPC endpoint, an internal ALB, and a CloudFront distribution. The template establishes secure communication channels by implementing private networking components, configuring SSL certificates, and setting up Route53 DNS routing. It uses custom AWS Lambda resources to dynamically manage network interfaces and security group configurations, providing a robust and flexible infrastructure for private API access, as shown in the following figure.

Figure 2: Amazon CloudFront to Private Amazon API Gateway walkthrough

Step 1: Create the CloudFront distribution and the VPC Origins

The solution creates a CloudFront distribution that enables wide range of HTTP clients by supporting HTTP2 and HTTP3, enhances your solution security by enforcing HTTPS-only traffic, and uses a custom domain with the user-provided SSL certificate.The internal ALB is configured as the origin for the CloudFront distribution, and it is created using the VPC Origins feature.

########### Cloudfront Distribution ###############
  CloudFrontDistribution:
    Type: AWS::CloudFront::Distribution
    Properties:
      DistributionConfig:
        HttpVersion: http2and3
        Comment: CloudFront Distribution with VPC Origin Integration
        Aliases:
        - !Ref CloudFrontDomainName
        ViewerCertificate:
          AcmCertificateArn: !Ref CloudFrontCertificateARN
          MinimumProtocolVersion: TLSv1.2_2021
          SslSupportMethod: sni-only
        Origins:
        - Id: AlbOrigin
          DomainName: !GetAtt ApplicationLoadBalancer.DNSName
          VpcOriginConfig:
            OriginKeepaliveTimeout: 60
            OriginReadTimeout: 60
            VpcOriginId: !GetAtt CloudFrontVpcOrigin.Id
        Enabled: true
        DefaultCacheBehavior:
          TargetOriginId: AlbOrigin
          CachePolicyId: 83da9c7e-98b4-4e11-a168-04f0df8e2c65
          OriginRequestPolicyId: 216adef6-5c7f-47e4-b989-5492eafa07d3
          ViewerProtocolPolicy: https-only

The VPC Origins references the internal ALB, and only supports HTTPS protocol.

  ########### Cloudfront VPC Origin ###############
  CloudFrontVpcOrigin:
    Type: AWS::CloudFront::VpcOrigin
    Properties:
      VpcOriginEndpointConfig:
          Arn: !Ref ApplicationLoadBalancer
          Name: !Sub vpc-origin-${AWS::StackName}
          OriginProtocolPolicy: https-only
          OriginSSLProtocols:
          - TLSv1.2

When the VPC Origins is created, the custom resource Lambda function adds an inbound rule to the CloudFront VPC Origin security group to allow traffic only from the CloudFront prefix list in the chosen Region.

        ec2_client.authorize_security_group_ingress(
            GroupId=cloudfront_sg_id,
            IpPermissions=[
                {
                    'IpProtocol': 'tcp',
                    'FromPort': 443,
                    'ToPort': 443,
                    'PrefixListIds': [{'PrefixListId': cloudfront_prefix_id}]
                }
            ]
        )

Step 2: Create the ALB

The internal ALB is configured with an HTTPS listener using the user-provided SSL certificate. This maintains the encryption of the traffic between CloudFront and the ALB.

########### ALB Listener ###########
  ALBListener:
    Type: AWS::ElasticLoadBalancingV2::Listener
    Properties:
      DefaultActions:
        - Type: forward
          TargetGroupArn: !Ref ALBTargetGroup
      LoadBalancerArn: !Ref ApplicationLoadBalancer
      Port: '443'
      Protocol: HTTPS
      SslPolicy: ELBSecurityPolicy-TLS-1-2-2017-01
      Certificates:
        - CertificateArn: !Ref ALBCertificateARN

The target group of the ALB points to the execute API VPC endpoint IP addresses. These IP addresses are fetched using a custom resource Lambda function.

  ########### ALB Target Group ###########
  ALBTargetGroup:
    Type: AWS::ElasticLoadBalancingV2::TargetGroup
    Properties:
      Port: 443
      Name: !Sub TargetGroup-${AWS::StackName}
      Protocol: HTTPS
      VpcId: !Ref VPCId
      Targets:
        - Id: !GetAtt GetPrivateIPs.IP0
          Port: 443
        - Id: !GetAtt GetPrivateIPs.IP1
          Port: 443
      TargetType: ip
      Matcher:
        HttpCode: '200,403'

The custom resource Lambda function fetches private IPs for given network interface IDs using the EC2 client and returns a dictionary with keys IP0 and IP1 values as the private IPs.

def fetch_interface_ips(network_interface_ids):
    """
    Fetch private IPs for given network interface IDs using ec2 client
    Returns a dictionary with keys IP0, IP1, etc. and values as the private IPs
    """
    responseData = {}

    # Use describe_network_interfaces instead of the resource approach
    response = ec2_client.describe_network_interfaces(
        NetworkInterfaceIds=network_interface_ids
    )

    for index, interface in enumerate(response['NetworkInterfaces']):
        responseData[f'IP{index}'] = interface['PrivateIpAddress']

    return responseData

Furthermore, the Lambda function adds an inbound rule to the internal ALB security group to allow traffic from the VPC Origin security group.

ec2_client.authorize_security_group_ingress(
            GroupId=security_group_id,
            IpPermissions=[
                {
                    'IpProtocol': 'tcp',
                    'FromPort': 443,
                    'ToPort': 443,
                    'UserIdGroupPairs': [{'GroupId': cloudfront_sg_id}]
                }
            ]
        )

Step 3: Create the VPC endpoint for Private API Gateway

The execute-api VPC Endpoint is configured to route traffic from the internal ALB to the Private API Gateway. Only VPC endpoints can resolve private endpoints and route traffic securely.

  ########### execute-api VPC Endpoint ###########
  ExecuteApiVpcEndpoint:
    Type: AWS::EC2::VPCEndpoint
    Properties:
      ServiceName: !Sub "com.amazonaws.${AWS::Region}.execute-api"
      VpcId: !Ref VPCId
      SubnetIds: !Ref PrivateSubnets
      VpcEndpointType: Interface
      PrivateDnsEnabled: true
      SecurityGroupIds:
        - !Ref VpcEndpointSG

Step 4: Create the Private API Gateway Resource Policy

The Resource Policy set up on the Private API Gateway only allows traffic from the VPC endpoint placed within the user-defined VPC.

        x-amazon-apigateway-policy:
          Version: "2012-10-17"
          Statement:
          - Effect: "Allow"
            Principal: "*"
            Action: "execute-api:Invoke"
            Resource: "execute-api:/*"
            Condition:
              StringEquals:
                aws:sourceVpce:
                - !Ref ExecuteApiVpcEndpoint

Testing

Fetch the CloudFront URL from the Outputs section of the deployed stack and test it by using the curl command or your web browser.

curl https://{your custom domain name}
{"message": "Hello from API GW"}

Conclusion

This post demonstrates how you can establish a secure architecture to access a Private REST API Gateway through a Private ALB, using Amazon CloudFront as the entry point for your application. The solution uses the CloudFront VPC Origins feature, a powerful capability that you can use to directly integrate CloudFront with resources that you host within your Amazon VPC. You can implement this architecture to significantly enhance your application’s security posture as you restrict access to your backend services and minimize the potential attack surface. This approach provides you with a robust and reliable method to protect your applications from unauthorized access while maintaining high availability and performance through the CloudFront global content delivery network.
