Overview

This Guidance, with the sample code, can be used to deploy a carbon data lake to the AWS Cloud using an AWS Cloud Development Kit (AWS CDK). It provides customers and partners with the foundational infrastructure that can be extended to support use cases including monitoring, tracking, reporting, and impact verification of greenhouse gas emissions. The carbon data lake Guidance sample code deploys a data lake and processing pipeline that assists with data ingestion, aggregation, automated processing, and CO2 equivalent calculation based on ingested greenhouse gas emissions data.

Please note: This solution by itself will not make a customer compliant with any end-to-end carbon accounting solution. It provides the foundational infrastructure from which additional complementary solutions can be integrated.

How it works

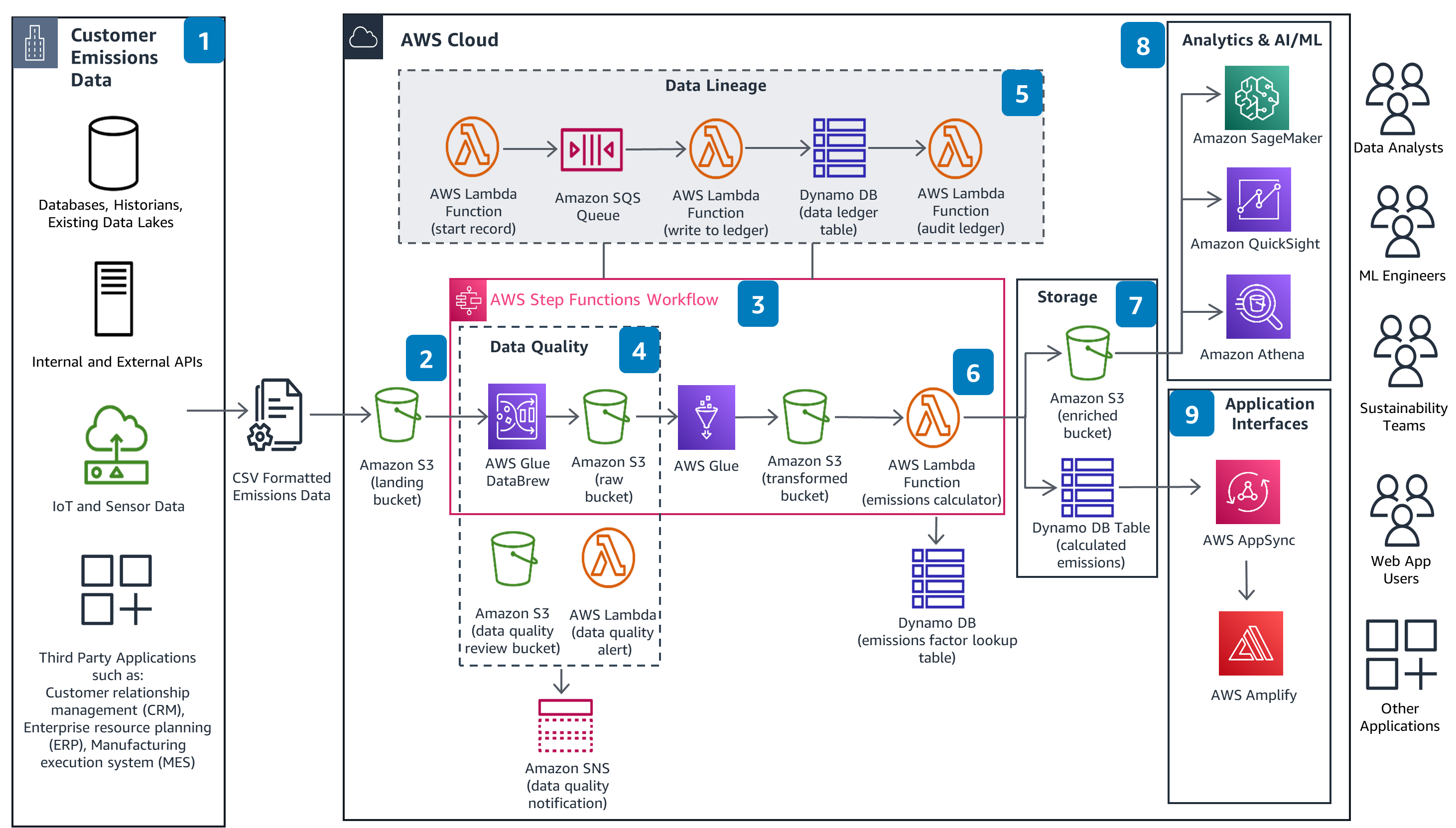

These technical details feature an architecture diagram to illustrate how to effectively use this solution. The architecture diagram shows the key components and their interactions, providing an overview of the architecture's structure and functionality step-by-step.

Download the architecture diagram

Well-Architected Pillars

The architecture diagram above is an example of a Solution created with Well-Architected best practices in mind. To be fully Well-Architected, you should follow as many Well-Architected best practices as possible.

If any changes are required for the Guidance, they can be implemented and deployed using GitHub Issues. All new deployments are tested through unit, security, infrastructure, and deployment testing.

Feedback can be visualized through the Step Functions workflow visuals. If data is not processed through the pipeline, the Step Functions workflow will visually depict at which point in the process the data processing failed. There are also Amazon SNS notifications that are sent when a pipeline fails for any reason. By using the Step Functions and Amazon SNS notifications, users can isolate the tech stack that caused a problem and evaluate the data submitted to the pipeline about the tech stack identified.

Read the Operational Excellence whitepaper

This Guidance applies a zero-trust model for authentication and authorization. All users to the web application are authenticated using Amazon Cognito user pools. All additional resources are granted least-privilege access and all access patterns are evaluated using the cdk-nag utility to check AWS Cloud Development Kit (AWS CDK) applications.

 All data is encrypted at rest and in transit using AWS Key Management Service (AWS KMS), Amazon S3, Lambda, AWS Glue DataBrew, and DynamoDB.

Read the Security whitepaper

The services in this Guidance are highly available by default through AWS Managed Services (AMS). By enabling the provided sample code, all Amazon S3 bucket access is logged by default. Managed services such as Lambda and Step Functions emit Amazon CloudWatch metrics, and appropriate alarms can be configured to notify users about threshold breaches.

All deployment and configuration changes are managed using AWS CDK, reducing the possibility of human error.

Read the Reliability whitepaper

The README file contains specific directions to extend, modify, or add to the Guidance. AWS customers or partners can extend the Guidance by adding additional ingestion APIs such as: building custom emissions factor libraries, doing custom calculations, and creating custom visualizations, forecasting, or AI/ML tools.

To decrease latency and improve performance, this Guidance is designed for deployment in any major AWS Region using AWS CDK regional context.

Read the Performance Efficiency whitepaper
The services in this guidance are managed by AWS and are serverless. They were selected to meet the demand with only the minimum resources required. We evaluated and tested with simulated synthetic data sources, selecting services that optimize performance while reducing cost and carbon footprint.
Read the Cost Optimization whitepaper

By using an on-demand serverless architecture and Step Functions, this Guidance can continually scale to match the load with only the minimum resources. All data processing is compressed and each layer of the architecture deploys to a single Region by default.

Read the Sustainability whitepaper  Read the Sustainability whitepaper
