One way that customers running Microsoft Workloads on Amazon Web Services (AWS) may reduce costs is taking advantage of Bring Your Own License (BYOL) for eligible licenses they own. In this blog post, we are going to share a few practices to help you optimize your operation of BYOL Windows Server workloads on AWS.

Introduction

A common way to run your Windows Server workloads on Amazon Elastic Compute Cloud (Amazon EC2) is to use the “license included” option. This has the benefit of not having to purchase or manage your own licenses and the flexibility of per-second billing. However, if you have already purchased licenses and they are eligible for use on AWS, then it makes sense to bring them and reduce your costs accordingly.

We will review several specific techniques to help you when running BYOL Windows Server workloads on AWS. They are:

• Preparing your on-premises servers for import to AWS as Amazon Machine Images (AMIs).
• Transition and manage your Windows licenses from BYOL to license included when appropriate.
• Detecting configuration issues using an AWS Config custom rule.
• Understanding data related to your BYOL Windows instances in the AWS Cost and Usage Report (AWS CUR).

BYOL for Windows on AWS

To take advantage of BYOL, you need to confirm that they are eligible. AWS provides guidance for Microsoft Licensing on AWS. When determining if your Windows licenses are eligible for BYOL on AWS, consider:

• Licenses must be perpetual, and purchased before October 1, 2019, or as a true-up on an Enterprise Agreement (EA) that was active at that time.
• The Windows version must be Windows Server 2019 or earlier.

If your licenses are eligible, then you can use them on AWS. Regardless of whether or not you have Software Assurance on your licenses, Windows Server is not eligible for License Mobility. This means that the licenses will need to apply to hardware dedicated to you alone. Amazon EC2 Dedicated Hosts are a solution that fulfills this requirement. Dedicated Hosts provide you with a familiar experience for running your Amazon EC2 instances, without the need to manage hardware or a hypervisor. AWS License Manager is a service used to manage licenses in AWS, and it is key to an effective BYOL Windows strategy.

The billing for your Amazon EC2 Windows instances is determined from the usage operation field that the instance inherits from its source AMI. Windows instances that run with the license included, regardless of tenancy, use the usage operation of RunInstances:0002. However, when you use your own license for a Windows instance on dedicated hosts, the usage operation of RunInstances:0800 is required. The how to create an Amazon EC2 AMI usage and billing information report blog post will help you generate the usage operation for the instances in your organization.

Preparing your images for BYOL

One requirement for using your own Windows licenses on AWS is to supply your own AMI, rather than using one created by AWS. When bringing your own image to AWS, you have different options to produce them. If the destination for your Windows server is BYOL on dedicated hosts, these tools will help you ensure your AMI is ready for use.

VM Import/Export (VMIE) is a tool that helps you to import virtual machine images from your existing virtualization platform as Amazon Machine Images. The first step is to export your virtual machine using a standard format such as Open Virtual Appliance (OVA), ESX Virtual Machine Disk (VMDK), or Virtual Hard Disk (VHD/VHDX). Then, upload the image to an Amazon Simple Storage Service (S3) bucket in anticipation of the conversion process.

To use VMIE, use these instructions to create an AWS Identity and Access Management (IAM) role named “vmimport” that the service will use to perform operations on your behalf.

When using the AWS Command Line Interface (AWS CLI) to import a Windows image that you are planning on using for BYOL on dedicated hosts, it is necessary to specify the license type to set the usage operation correctly on the resultant AMI. To import an image, a command such as the following can be used (in this case for an OVA image in an S3 bucket):

aws ec2 import-image –usage-operation RunInstances:0800 –disk-containers Format=OVA,Url=s3://<<my-bucket>>/<<my-image-name>>.ova

This will start an import job that, once completed, will yield an AMI with the proper usage code for Windows BYOL.

Migration Hub Orchestrator is a tool that lets you create workflows to automate tasks and simplify the migration process. One of the workflow templates that Orchestrator provides is “Import virtual machine images to AWS”. Use this workflow to import an image for Windows BYOL.

1. Open the AWS console and navigate to the Migration Hub Console.
2. Choose Workflows in the Orchestrate side menu.
3. Choose Create Workflow (Figure 1)

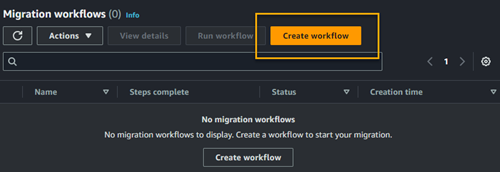

Figure 1: Create Workflow

4. Select the Import virtual machine images to AWS template (Figure 2) and choose Next

Figure 2: Select the import virtual machine template

5. On the Configure your workflow page, enter a Name for the workflow, and optionally enter a Description.
6. In the Source environment configuration section, populate the Disk container field, which is the S3 bucket where you stored your image from on premises. The name must conform to the requirements from the Migration Hub Orchestrator documentation.

Figure 3: Configure source environment

7. In the Target environment configuration section, select the operating system and license for the virtual machines created with the resultant AMI. Choose Windows Server BYOL without SQL Server.

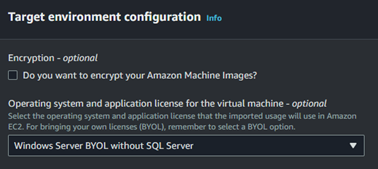

Figure 4: Choose the licensing model

8. Use the rest of the fields to further customize your AMI based on your requirements. These include the boot mode, AWS Key Management Service (KMS) encryption key, tags and license specification (for business case analysis). You also have the option to leave these with their default values. Choose
9. On the Review and submit page, choose

After uploading an image and creating your workflow, it is ready to run by choosing Run workflow.

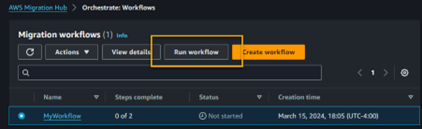

Figure 5: Run Workflow

Managing license conversion properly

There are scenarios in which you will need to switch Amazon EC2 instances from the BYOL licensing model to license included and vice versa. These include (but are not limited to):

• Upgrading the operating system of the Amazon EC2 instance to Windows Server 2022, which is not eligible for BYOL, regardless of tenancy.
• Moving an Amazon EC2 instance off a dedicated host to run it on shared tenancy EC2, which is not eligible for BYOL.
• Moving an Amazon EC2 instance that is eligible for BYOL from shared tenancy to a dedicated host.

When you need to switch the licensing model of an Amazon EC2 instance, use the License type conversion feature in AWS License Manager. License type conversion lets you change the usage operation. See our guide for eligible license types for Windows and SQL Server in License Manager.

Detecting configuration issues with AWS Config

AWS Config is a service that helps you assess, audit, and evaluate the configuration of your AWS resources. By leveraging a custom AWS Config Rule, you can detect potential license misconfiguration in instances running on dedicated hosts, saving unnecessary licensing costs.

The aws-config-rules repository contains custom AWS Config Rules to deploy to your AWS account using the AWS Config Rules Development Kit (RDK). Use the custom AWS Config Rule called EC2_INSTANCE_LICENSE_INCLUDED_DEDICATED_HOST to detect instances with license-included Windows Server (usage operation RunInstances:0002) running on Dedicated Hosts.

Use AWS CloudShell to run the RDK and test the AWS Config rules deployment. To install the custom rule, open CloudShell in the AWS Console in the desired AWS Region, and run the following commands:

pip install rdk
rdk init
git clone https://github.com/awslabs/aws-config-rules
cd aws-config-rules/python
rdk deploy EC2_INSTANCE_LICENSE_INCLUDED_DEDICATED_HOST

Once the rule has completed deployment, view the rule in the AWS Config console. For instances with mis-configured licenses, either move them to Shared tenancy or follow the License Conversion process accordingly.

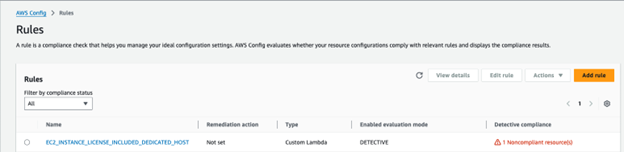

Figure 6: Custom Config rule

Understanding CUR data for BYOL instances

AWS Cost and Usage Reports (CUR) contains the most comprehensive set of cost and usage data available. Use Amazon Athena to query your CUR data. The following query shows the licenses your instances are being billed for:

select
    line_item_resource_id,
    line_item_operation,
    line_item_line_item_type,
    month,
    year,
    line_item_unblended_cost,
    line_item_blended_cost,
    line_item_usage_type,
    line_item_usage_account_id,
    line_item_line_item_description
from
    customer_all
where
        line_item_usage_account_id = '[ACCOUNT NUMBER]'
    and line_item_line_item_type = 'Usage'
    and line_item_operation like '%RunInstances:%'

Based on the results of the above Query, the line_item_operation field shows what you’re being billed for.

Figure 7: AWS CUR output

Conclusion

Implementing BYOL for Windows Server workloads on AWS successfully, requires careful attention to license eligibility, configuration, and ongoing management. By understanding the key requirements – from license purchase dates and Windows Server versions to proper usage operation codes on dedicated hosts – organizations can effectively reduce their cloud infrastructure costs while maintaining compliance. Success depends on three key elements:

1. Proper license evaluation – identifying eligible licenses based on purchase date and Windows Server version
2. Accurate configuration – ensuring correct usage operation codes to avoid double-billing on dedicated hosts
3. Ongoing monitoring – maintaining regular assessment of usage and costs

By following these practices, organizations can optimize their Windows Server deployment costs while maintaining licensing compliance on AWS.

Ready to start optimizing your Windows Server costs on AWS? Request an AWS Optimization and Licensing Assessment to begin evaluating your licensing opportunities and potential cost savings.
