Achieve low-latency data processing with Amazon EMR on AWS Local Zones

Enterprises today require both single-digit millisecond latency data processing and data residency compliance for their applications. By deploying Amazon EMR on AWS Local Zones, organizations can achieve single-digit millisecond latency data processing for applications while maintaining data residency compliance. This post demonstrates how to use AWS Local Zones to deploy EMR clusters closer to your users, enabling millisecond-level response times. We use a Secure Web Gateway as an example and implement Amazon EMR with Apache Flink on AWS Local Zones to process network traffic with ultra-low latency. We also go through the process of creating an EMR cluster on AWS Local Zones, highlighting performance optimizations and architecture considerations specific to edge deployments. This approach uses AWS Local Zones to bring Amazon EMR’s data processing capabilities closer to your users and data sources – ideal for security applications or any other latency-sensitive workloads.

Solution overview

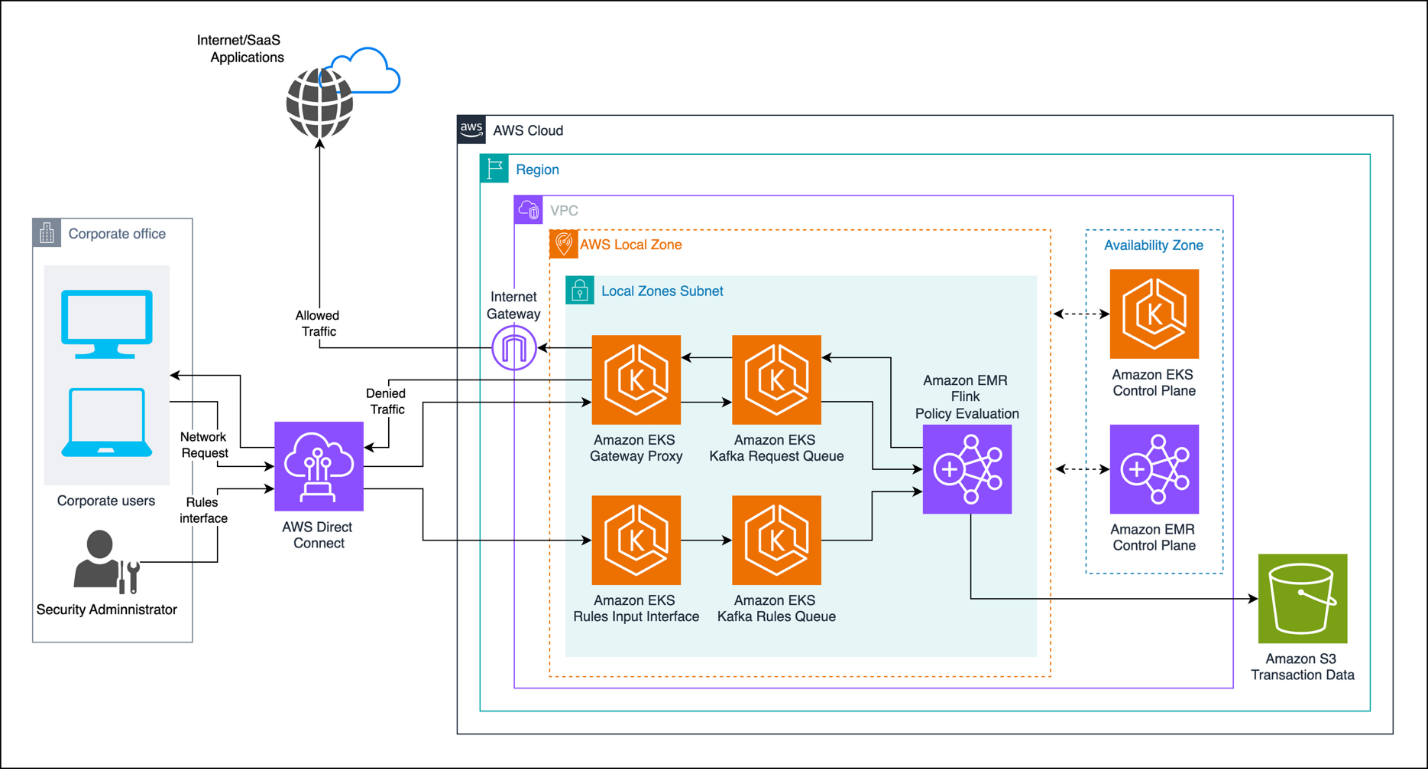

The following diagram illustrates the solution architecture.

Sample Architecture for Secure Web Gateway on AWS LocalZones

The solution consists of several key components:

  • AWS Local Zones deployment – Positioned close to corporate offices to minimize latency
  • Network traffic interception – Using AWS Transit Gateway and virtual private cloud (VPC) endpoints
  • Request queuing and rules streaming – Using Apache Kafka on Amazon Elastic Kubernetes Service (Amazon EKS) to queue the incoming and outgoing network requests as well as stream rules as they are updated by the security administrator
  • EMR cluster – Running Flink for real-time stream processing and functions to combine rules
  • Policy management system – For defining and updating security rules
  • Logging – Using Amazon Simple Storage Service (Amazon S3) for visibility, compliance, and data analytics

In this scenario, the Secure Web Gateway is designed to inspect and make decisions on network traffic within single-digit milliseconds. The workflow consists of the following steps:

  1. The corporate office uses AWS Direct Connect to connect to AWS Local Zones.
  2. The security administrator defines the rules from a rules interface running on Kubernetes pods on Amazon EKS. As the rules are added or modified, they are sent to the swg_rules Kafka topic running on Amazon EKS. These rules are stored and processed by Flink running on the EMR cluster.
  3. A corporate user requests for a software as a service (SaaS) application from the corporate office. The request is routed through Direct Connect to the Local Zone.
  4. The Secure Web Gateway proxy service running on Kubernetes pods on Amazon EKS receives the access request, which is sent to the swg_requests Kafka topic.
  5. Flink running on EMR evaluates and consumes the messages from the swg_requests Kafka topic and determines the routing decision, which is sent back to the swg_decisions Kafka topic.
  6. The Secure Web Gateway proxy service consumes the swg_decisions topic and routes the traffic to the SaaS application, if the access request is allowed. If the request is denied, the proxy responds back to the users with the reason or violations details, if any.

Due to the real-time nature of the solution, the security administrator can add, modify, or remove the rules through the swg_rules topic as Flink constantly consumes and evaluates this topic.In the following sections, we discuss the key components of the solution in more detail.

AWS Local Zones: The foundation

AWS Local Zones provide low-latency extensions of AWS Regions positioned near large population and industry centers. For our Secure Web Gateway use case, deploying in a Local Zones offers several advantages:

  • Proximity to corporate offices – Reducing round-trip latency for traffic inspection. AWS Local Zones is designed to provide applications with low latency aiming for single-digit millisecond performance.
  • AWS-native security controls – Using AWS security features.
  • Consistent connectivity – Reliable connection between corporate networks and AWS resources.

The Local Zone hosts our EMR cluster and networking components, making sure traffic inspection through the Secure Web Gateway happens with single-digit millisecond latency. For scenarios where traffic inspection doesn’t require single-digit millisecond latency, deploying hosting the solution on EMR cluster in a Region should work fine.

Amazon EMR with Apache Flink: The decision engine

The core intelligence of our Secure Web Gateway solution is powered by Amazon EMR running Flink for real-time stream processing. With Amazon EMR running on Flink, we take advantage of the optimized real-time stream processing capability offered by Flink. EMR running in AWS Local Zones helps users perform complex data processing closer to their data centers or corporate locations without worrying any potential latency introduced for moving the data to other Regions. In this particular solution, we use Flink’s stateful processing, which allows for maintaining the session context across multiple network requests/packets. The solution also provides a dynamic rules engine that is combined with the real-time stream of requests for network access.

Architectural component choice considerations

Amazon EMR offers several deployment options for different kinds of workloads and use cases, including Amazon EMR on EKS. AWS also provides Amazon Managed Service for Apache Flink, a fully managed service that simplifies the process of building and managing Flink applications. As of this writing, both the EMR on EKS deployment option and Amazon Managed Service for Apache Flink are not available in AWS Local Zones.

Prerequisites

Before proceeding with this deployment, ensure you have:

  • AWS account with AWS IAM permissions for Amazon VPC, EMR, and Local Zones management
  • Basic familiarity with the AWS Management Console

Deploy Amazon EMR on a Local Zone

To deploy Amazon EMR on a Local Zone, you first need to enable the Local Zone for the AWS account. For instructions, refer to Step 1 and Step 2 in Getting started with AWS Local Zones.

After you have enabled a Local Zone and created a Local Zone subnet, create your EMR cluster. For instructions, refer to Step 1: Configure data resources and launch an Amazon EMR cluster. You can follow the instructions provided for the AWS Management Console. Make sure you select the appropriate Amazon EMR release version (5.28.0 or later for Local Zone support). Select the applications you need, which in this case is Hadoop and Flink.

A crucial step to launching an EMR cluster in a Local Zone is selecting the Local Zone network configuration. Choose the VPC that contains your Local Zone subnet, and choose the subnet that you created in the Local Zone.

Review all other configurations and settings for your cluster and make any final adjustments as needed, then choose Create cluster to launch your EMR cluster in the Local Zone.

Performance and scaling considerations

The Local Zone EMR deployment can be scaled based on traffic patterns. You can manually scale the EMR cluster horizontally by adding more worker nodes during peak traffics to provide low-latency performance, after you have increased the number of users that access the Secure Web Gateway. Alternatively, you can set up a scheduled action to scale the EMR cluster at predetermined times based on known workload patterns. You can also perform vertical scaling by using Amazon Elastic Compute Cloud (Amazon EC2) instance types with more compute capacity. Consider using the manual resize option for EMR clusters to modify the cluster size based on workload requirements.

Another important performance consideration is to optimize Flink checkpointing for fault tolerance. To learn more, see Optimizing job restart times for task recovery and scaling operations.

Security considerations

Although this architecture prioritizes low-latency performance, implementing proper security controls is essential for production deployments. The solution handles sensitive corporate network traffic that requires protection through encryption, access controls, and monitoring. For comprehensive security guidance specific to EMR deployments, refer to Security in Amazon EMR. Consider the following key areas:

  • Data protection – Enable encryption at rest and in transit using Amazon EMR security configurations, including Amazon S3 encryption and TLS certificates for inter-node communication
  • Access control – Implement AWS Identity and Access Management (IAM) roles with least privilege for Amazon EMR service roles, EC2 instance profiles, and runtime roles to isolate job access
  • Network security – Deploy EMR clusters in private subnets with security groups following least privilege, and enable the Amazon EMR block public access feature

Benefits of Amazon EMR

Using Amazon EMR on AWS Local Zones in this architecture offers several key benefits:

  • Low latency – Providing the compute in AWS Local Zones close to corporate offices helps you achieve low-latency processing.
  • Real-time inspection – Flink’s streaming capabilities unlocks the ability to process real-time inspection for network requests.
  • Complex policy application – With Flink on Amazon EMR, you can build a complex policy application that, for instance, can detect sophisticated access patterns across multiple events and time windows that would be impossible with traditional rule-based systems.
  • Scalability – Amazon EMR provides the flexibility to automatically scale the cluster with a custom policy. Moreover, Amazon EMR release 6.15.0 and higher supports Flink autoscaler, which automatically scales the individual Flink job vertexes based on the job metrics.
  • Compliance – Logging all the events to a durable storage like Amazon S3 helps users improve their security and audit posture.

Clean up

To avoid incurring unnecessary charges, clean up the resources you created during this walkthrough. Follow these steps in order:

Step 1: Terminate the EMR cluster

  • Open the Amazon EMR console
  • Select your EMR cluster from the list
  • Choose Terminate
  • Confirm the termination when prompted
  • Wait for the cluster status to change to “TERMINATED”

Step 2: Clean up VPC resources

  • In the Amazon VPC console, delete the Local Zone subnet you created
  • If you created a custom VPC specifically for this demo, delete any associated:
    • Route tables
    • Internet gateways
    • Security groups (other than default)
    • The VPC itself

Step 3: Disable the Local Zone (optional)

  • In the EC2 console, go to Zones under “Settings”
  • Find your enabled Local Zone
  • Choose Manage and disable the zone if you no longer need it for other workloads

Step 4: Review additional resources Check for and clean up any other resources you may have created:

  • S3 buckets used for logging or EMR storage
  • CloudWatch log groups
  • Any custom IAM roles or policies created specifically for this architecture

Conclusion

This implementation of Amazon EMR on AWS Local Zones demonstrates how enterprises can bring powerful data processing capabilities to the edge while maintaining single-digit millisecond latency. By showcasing a Secure Web Gateway application, we have illustrated just one of many possible use cases where performance-sensitive workloads can benefit from this architecture.As the edge computing landscape evolves, we anticipate organizations will increasingly use this pattern for additional use cases, including:

  • Real-time fraud detection for financial transactions requiring immediate decision-making
  • Connected vehicle applications where processing telemetry data with minimal latency is critical
  • Internet of Things (IoT) sensor analytics that require immediate insights from operational technology environments
  • Augmented reality experiences where processing must happen close to end-users

We encourage you to evaluate your latency-sensitive workloads and consider how AWS Local Zones with Amazon EMR might help you implement architectures previously perceived highly challenging. Start small with a proof of concept like the one outlined here, measure the performance gains, and expand to production use cases with confidence. Implementing a Secure Web Gateway in AWS Local Zones with Amazon EMR and Flink offers enterprises a powerful solution for securing corporate traffic. By using the proximity of Local Zones and the real-time processing capabilities of Flink, organizations can implement sophisticated security policies without the latency penalties traditionally associated with traffic inspection.
